Performance Feature

Technical Specifications
Model Capacity (T/h) Accuracy (T/h) Voltage (V)
MSPR-63 (CCD) 0.6~1 > 99.99 % AC220V/50Hz
MSPR-126(CCD) 1~2 > 99.99 % AC220V/50Hz
MSPR-189(CCD) 2~5 > 99.99 % AC220V/50Hz
MSPR-252(CCD) 3~6 > 99.99 % AC220V/50Hz
MSPR-315(CCD) 3~8 > 99.99 % AC220V/50Hz
MSPR-378(CCD) 5~8 > 99.99 % AC220V/50Hz
MSPR-MM1(CCD) 7~10 > 99.99 % AC220V/50Hz
MSPR-504(CCD) 9~12 > 99.99 % AC220V/50Hz
MSPR-630(CCD) 10~14 > 99.99 % AC220V/50Hz
MSPR-756(CCD) 12~25 > 99.99 % AC220V/50Hz



Model Power (Kw) Weight (Kg)      Dimension (LxWxH)mm
MSPR-63 (CCD) < 1.5 450 (+5%) 910x1610x1545
MSPR-126(CCD) < 1.8 700 (+5%) 1224x1610x1620
MSPR-189(CCD) < 2.0 800 (+5%) 1550x1610x800
MSPR-252(CCD) < 2.6 1200 (+5%) 1870x1595x2040
MSPR-315(CCD) < 3.0 1450 (+5%) 2170x1595x2040
MSPR-378(CCD) < 3.6 1500 (+5%) 2528x1595x2040
MSPR-MM1(CCD) < 4.0 1750 (+5%) 2840x1595x2040
MSPR-504(CCD) < 4.6 1800 (+5%) 3152x1595x2040
MSPR-630(CCD) < 5.5 2200 (+5%) 3910x1595x2040
MSPR-756(CCD) < 6.6 2600 (+5%) 4300x1595x2040

*Design and specifications may change without notice.

Description

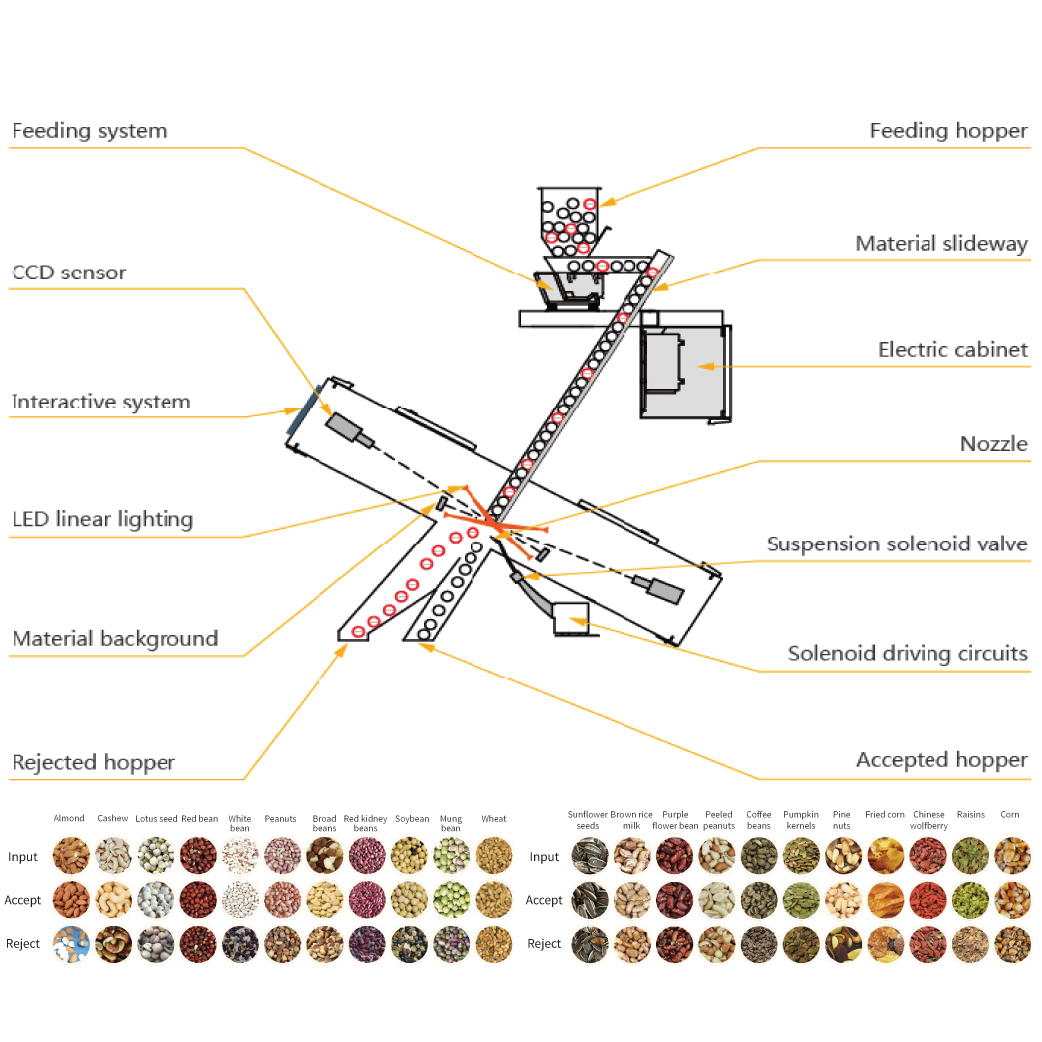

Working Principle

  1. With high sensitivity and high resolution industrial color CCD sensor, it can instantly capture tiny defects with an accuracy of 0.04 square milimeters.
  2. The world’s leading color selection machine special injection valve, long life, fast response speed, good consistency and other advantages.
  3. Adopt the latest FPGA processing technology to analyze and process the signal characteristics of the selected materials and identify tiny particles of 0.04 square mm.
  4. Adopt high speed air valve with high end embedded processing chip to effectively improve the color sorting accuracy.
  5. Automatic fault alarm system, modular structure, easy to maintain.
